Description

Technical Parameters

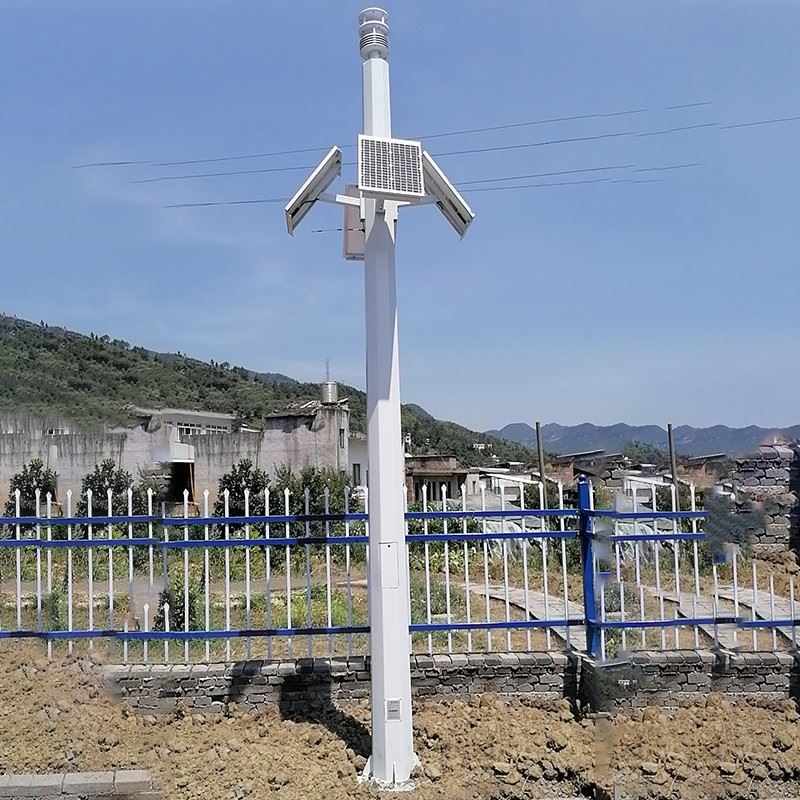

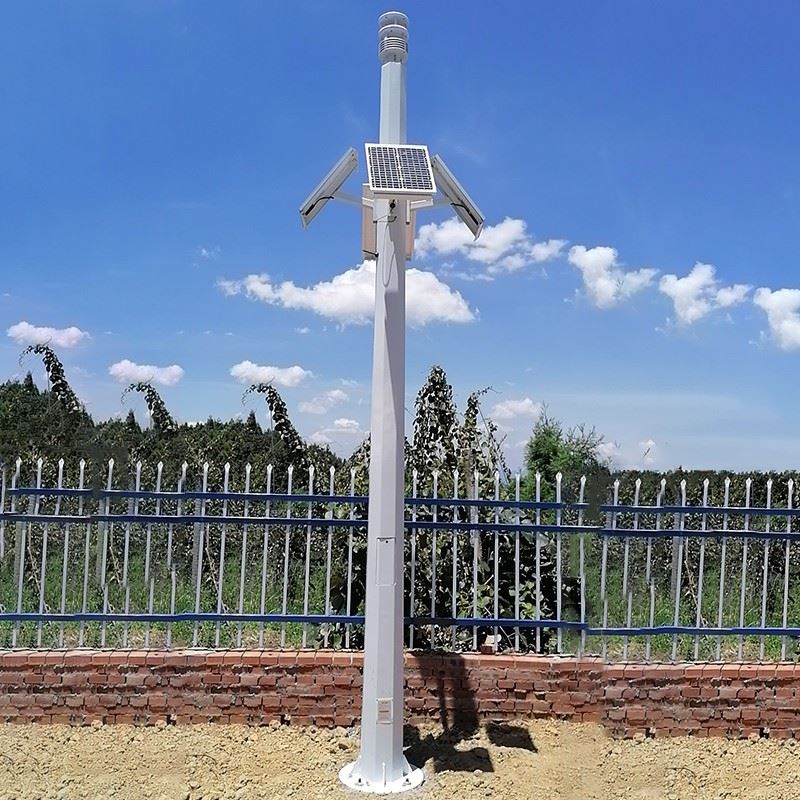

The Wireless Agricultural Meteorological Comprehensive Monitoring Station is a self-powered, field-deployed hardware array that measures real-time microclimate data.

Product Parameters

Parameter	Specification
Air Temperature Sensor	PT100 RTD, ±0.2°C, -40°C to +80°C
Soil Moisture Measurement	TDR method, 0–100% VWC, ±2% accuracy
Solar Radiation Sensor	ISO 9060 Class A pyranometer, <1% annual drift
Rainfall Measurement	0.2 mm tipping bucket, ±3% accuracy up to 120 mm/hr
Wind Monitoring	Ultrasonic 2D anemometer, up to 60 m/s, no moving parts
Calibration Standard	NIST / DAkkS traceable certificates per unit

Product Specifications

System Layer	Specification
Communication Network	4G LTE-M / NB-IoT + 2G/3G fallback
Industrial Integration	Modbus RTU (RS485) + MQTT/JSON APIs
IoT Ecosystem Compatibility	LoRaWAN (US915 / EU868), TTN, Helium
Data Security & Storage	16GB local storage, up to 5,000,000 logs
Remote Maintenance	OTA firmware updates
Enclosure Protection	IP66 + UV-stabilized polycarbonate housing
Structural Durability	-20°C LiFePO4 battery + 140 mph wind resistance

Application Scenarios

Vineyard Frost Mitigation: Deployed at canopy level to monitor wet-bulb temperature, triggering automated system alerts or irrigation relays when conditions approach critical frost thresholds.

Orchard Irrigation Management: Multi-depth soil moisture sensors (10cm–100cm) paired with solar radiation data map daily crop water use to optimize drip irrigation runtimes.

Open-Field Cereal Disease Tracking: Continuous relative humidity and leaf wetness duration data feed industry-standard predictive models for wheat rust and leaf blotch.

Commercial Greenhouse Microclimates: Synchronizes multi-span greenhouse ventilation fans based on localized Vapor Pressure Deficit (VPD) targets to prevent mold growth.

Custom & OEM/ODM Capabilities

Protocol Integration: Factory integration of third-party SDI-12, Modbus RTU, or 4-20mA sensors directly into the core telemetry board.

Hardware Modifications: Custom internal mounting plates, specialized high-gain radio antennas, and sensor signaling cables extended up to 15 meters.

Firmware Customization: Pre-programmed data smoothing algorithms and custom alert logic flashed directly into the microcontroller before shipping.

After-Sales Support & Warranty

36-Month Hardware Warranty: Covers all non-consumable electronics, sensors, and structural components against manufacturing defects.

Technical Escalation: Tier-3 hardware and software engineering response guaranteed within 24 business hours for critical data interruptions.

Lifecycle Support: Guaranteed replacement sensor probe stock availability for a minimum of 7 years post-purchase for all model versions.

Advance Hardware Replacement SLA: Qualified enterprise accounts receive replacement sensor modules via air freight before returning defective units to eliminate data gaps.

Certifications & Compliance

CE Mark Certification: Compliance verified under European Radio Equipment Directive (RED) 2014/53/EU and EMC standards for industrial deployment.

FCC Part 15 Class B: Certified for United States operations, ensuring RF emissions comply with localized wireless network standards.

RoHS 3.0 Compliance: 100% free of hazardous substances in accordance with EU Directives 2011/65/EU and 2015/863.

Environmental & Stress Testing: Validated under IEC 60068-2 laboratory vibration standards and rated IP67 for continuous outdoor operation.

FAQ

Q: What is the field-proven temperature measurement accuracy under real farming conditions?

A: The system maintains ±0.25°C accuracy after 12 months of continuous outdoor deployment in humid and semi-arid climates. Drift remains below 0.05°C per year under standard calibration cycles.

Q: How often do sensors require recalibration in real agricultural use?

A: Most sensors require recalibration every 18–24 months, depending on environmental exposure. Soil moisture probes may need earlier checks in high-salinity soils after 12 months.

Q: What happens to data collection during weak or unstable network conditions?

A: The station stores up to 5 million records locally and automatically syncs once connectivity is restored. No data loss occurs even after 30+ days of offline operation.

Q: How long can the system operate without sunlight in cloudy or rainy seasons?

A: With a fully charged LiFePO4 battery, the system can operate continuously for 12–18 days without solar input.

Q: What encryption methods are used to protect agricultural data?

A: All transmitted data is secured using TLS 1.2 encryption with AES-256 payload protection. Device authentication is handled via unique hardware-based digital certificates.

Q: How does the system perform in remote areas with weak cellular coverage?

A: It automatically switches between LTE-M, NB-IoT, and 2G fallback depending on signal strength. In extremely remote zones, LoRaWAN gateway integration is recommended.

Q: What is the expected operational lifespan of the full monitoring station?

A: Core hardware is designed for 8–10 years of field operation, while sensor probes typically last 4–6 years depending on soil chemistry and environmental stress.

Q: How stable are soil moisture readings over multi-season usage?

A: Sensor deviation remains within ±2.5% VWC after two full crop cycles when installed correctly.
