Description

Technical Parameters

This product is a solar-powered industrial-grade pest control device. Through a UV trapping and sticky trapping system, it achieves pesticide-free, all-weather automatic pest control, suitable for agricultural and storage environments.

Key Features

High-Efficiency UV Trapping: Optimized UV wavelength matching to pest spectral response, improving capture efficiency, suitable for low pest density environments.

Solar-Powered Off-Grid Operation: 6-8 hour charge allows for overnight operation, requiring no external power, suitable for remote agricultural areas.

No Chemical Pollution: Purely physical trapping method, no pesticide residue, meets organic agriculture and export standards.

Low-Maintenance Design: Modular trapping plate structure, replaceable every 7-20 days, single-person operation.

IP65 Protection Rating: Waterproof and dustproof structure, suitable for rainy seasons, high humidity, and strong UV environments.

Technical Specifications

Parameter	Specification
Solar Panel	Monocrystalline 5W / 10W / 20W
Battery	Li-ion 3.7V 2200–6000mAh
Light Source	UV LED 365nm + 395nm
Coverage Area	100–500 m²
Material	UV-resistant ABS / PC
Protection Level	IP65
Operation Mode	Automatic light control
Temperature Range	-10°C to 50°C
LED Lifespan	≥30,000 hours
Battery Cycle Life	≥500 cycles
Autonomy	2–5 days (no sunlight)

Application Scenarios

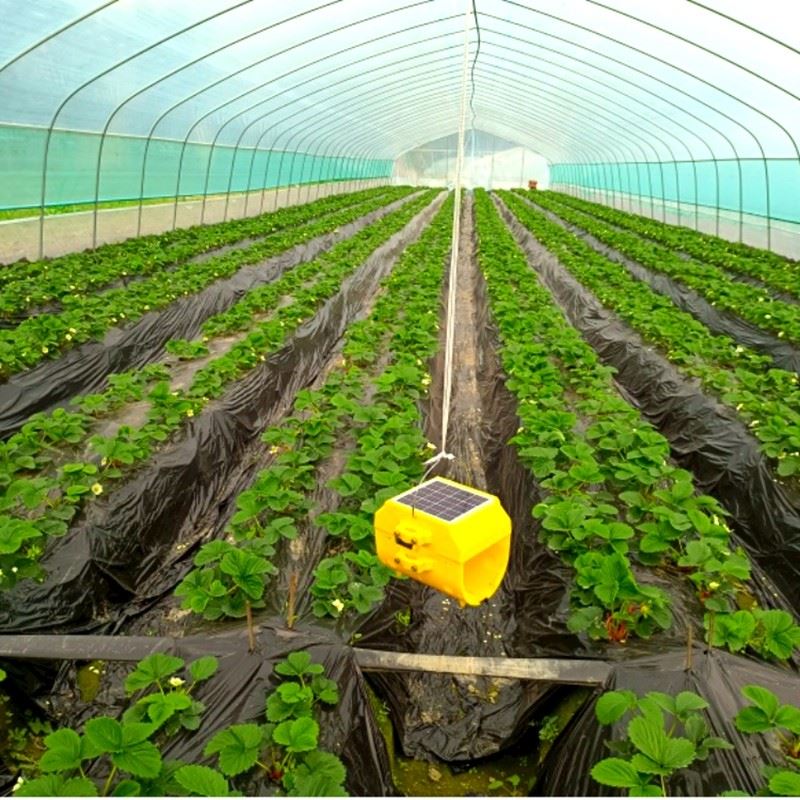

Agricultural Planting: Orchards, greenhouses, and field crops; used for long-term pest control.

Food Storage: Grain warehouses and food processing plants; avoids chemical contamination and insect residue problems.

Commercial Outdoor Environments: Hotels, parks, and catering areas; noise-free and chemical-free.

Installation

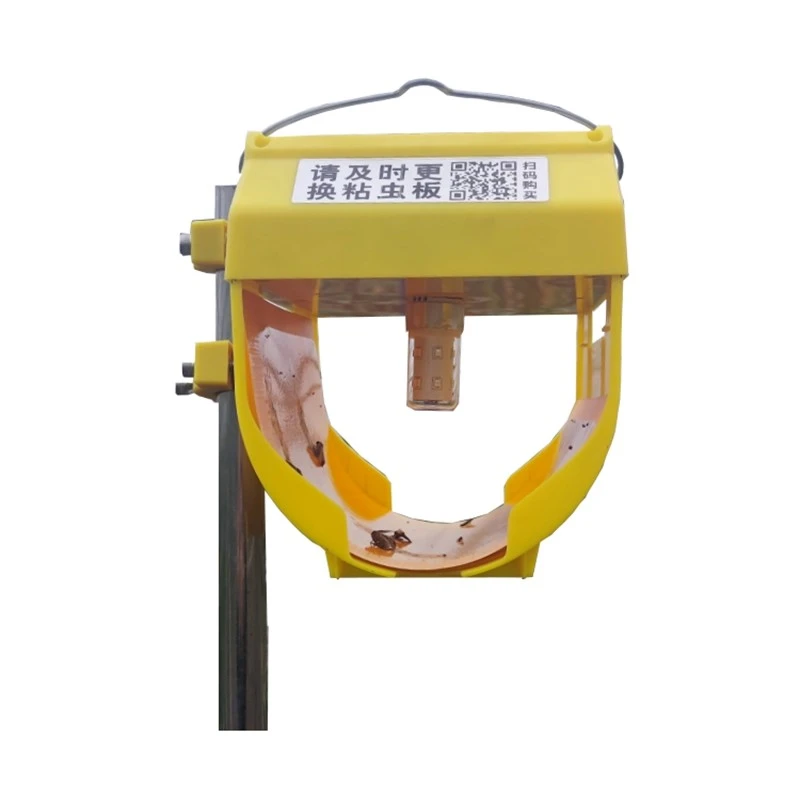

Quick Installation: No wiring required. Pole or wall mount installation, deployment completed within 10 minutes.

Automatic Operation: The light-controlled system starts and stops automatically, requiring no manual intervention.

Low Maintenance: Only the sticky insect board needs to be replaced; maintenance intervals are 7–20 days.

Quality & Certification

Industrial-Grade Testing Standards: Passes UV wavelength testing, IP65 waterproof testing, and high/low temperature cycling testing to ensure stable long-term outdoor operation.

International Transportation Certifications: Complies with UN38.3 / MSDS / IEC62133 standards, supporting global sea and air export.

OEM / ODM

Brand Customization Supported: Supports customization of logo, casing color, and structure to adapt to different market needs.

Project-Level Supply: Supports sample, small batch, and large batch orders, with a lead time of 15–30 days.

Manufacturing Strength

Industry Qualifications: Founded in 2010, the company is a national high-tech enterprise and participates in multiple plant protection and agricultural equipment industry organizations, possessing extensive industry experience and technological accumulation in the field of intelligent plant protection.

R&D Capabilities: The company has an independent R&D center, holding nearly 90 patents, and has participated in multiple provincial and municipal scientific research and industry standard formulation projects, covering LED insect attraction, physical insect control, and IoT monitoring technologies.

Production Capabilities: The company has a production base of approximately 10,000 square meters, enabling large-scale manufacturing and stable export delivery, supporting OEM/ODM batch customization and rapid delivery.

Quality and Certification: The company implements a full-process quality control system (IQC/IPQC/OQC) and has passed ISO and EU export-related certifications, ensuring product consistency and international market compliance.

Global Market Experience: Products have been applied in the agricultural and forestry sectors and exported to multiple overseas markets, demonstrating stable environmental adaptability and reliability through actual projects.

Service Capabilities: The company provides integrated R&D, production, and after-sales services, continuously optimizing and upgrading products to meet the needs of long-term global procurement and projects.

FAQ

Q: How long can the equipment operate without sunlight or during prolonged periods of overcast or rainy weather?

A: The equipment has a built-in lithium battery energy storage system, which can support 2-5 days of continuous operation on a full charge, depending on the model and usage frequency. It is suitable for areas with unstable climates.

Q: What is the actual effective coverage area of a single unit?

A: The standard coverage area is 100-500㎡. The actual effect depends on the installation height, pest density, and ambient light conditions. For large-scale projects, multiple deployment points can be used to improve effectiveness.

Q: How often do the sticky traps need to be replaced?

A: Typically, they need to be replaced every 7-20 days. The higher the pest density, the shorter the replacement cycle. In high-density agricultural areas, it is recommended to replenish consumables in bulk regularly.

Q: Can the consumables (sticky traps) be supplied stably and long-term?

A: Yes, as the source factory, we provide a long-term stable supply and support customized sizes, adhesive strength levels, and branded packaging, suitable for wholesale and distribution models.

Q: Is the equipment suitable for organic agriculture or export-standard farms?

A: Applicable to all situations. The equipment uses a purely physical sticky trapping method, leaving no chemical pesticide residues, making it suitable for organic agriculture certification and export-oriented planting bases.

Q: Is the equipment reliable in extreme weather (high temperature/heavy rain)?

A: The equipment is IP65 protected and can operate stably in environments ranging from -10°C to 50°C. It has passed waterproof and dustproof tests and is suitable for rainy seasons and high-humidity environments.

Q: Does the product meet international transportation and battery safety standards?

A: It complies with UN38.3, MSDS, and IEC62133 standards, and can be exported by sea and air, meeting the customs clearance requirements of European, American, and Middle Eastern markets.

Q: Is installation complex? Is a professional technician required?

A: No professional technician is required. It supports pole or wall mounting, and the installation time for a single unit is approximately within 10 minutes, suitable for large-scale rapid deployment projects.

Q: What are the main maintenance costs of this equipment?

A: The main maintenance cost is the replacement of the sticky traps. No electrician or technician intervention is required, and the overall maintenance cost is significantly lower than traditional electric shock insect control equipment.

Q: Does the company support OEM/ODM and project customization for large-scale procurement?

A: Yes, we can provide logo customization, structural optimization, solar power adjustment, and project-level solutions suitable for distributors and agricultural engineering projects.
