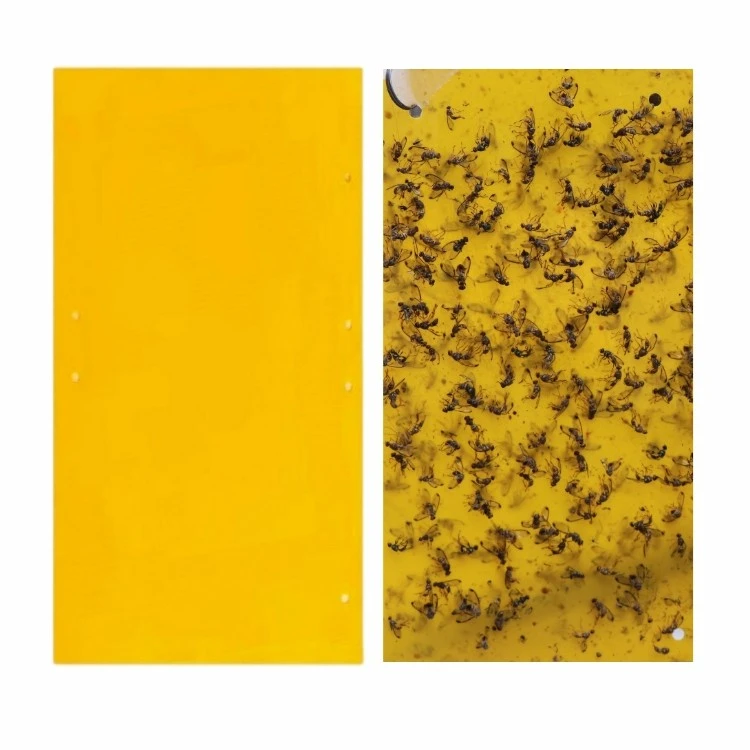

The double-sided insect sticky trap is a passive monitoring and capture tool used in agricultural and horticultural environments to attract and trap flying insects on both surfaces of a coated adhesive board.
Product Specifications
|
Product Attribute |
Specification |
|
Substrate Options |
240μm PP or 120 gsm biodegradable paperboard |
|
Adhesive System |
Polyisobutylene PSA, solvent-free, pesticide-free |
|
Coating Precision |
45 g/m² ±2 g/m², slot-die, uniform surface |
|
Standard Dimensions |
10×25 / 20×25 / 40×25 cm, ±0.5 mm tolerance |
|
Release Liner |
60 gsm silicone Kraft, 15–25 g/25mm release force |
|
Mechanical Strength |
>35 MPa tensile strength, wind-resistant |
|
UV Resistance |
Up to 180 days equivalent UV exposure |
|
Thermal Stability |
Stable up to 55°C without adhesive flow |
|
Moisture Resistance |
Works under rain, irrigation, fogging |
|
Capture Efficiency |
Up to 85% at 40% surface contamination |
Private Label & OEM Service
MOQ: Custom brand printing requires a Minimum Order Quantity (MOQ) of 50,000 units.

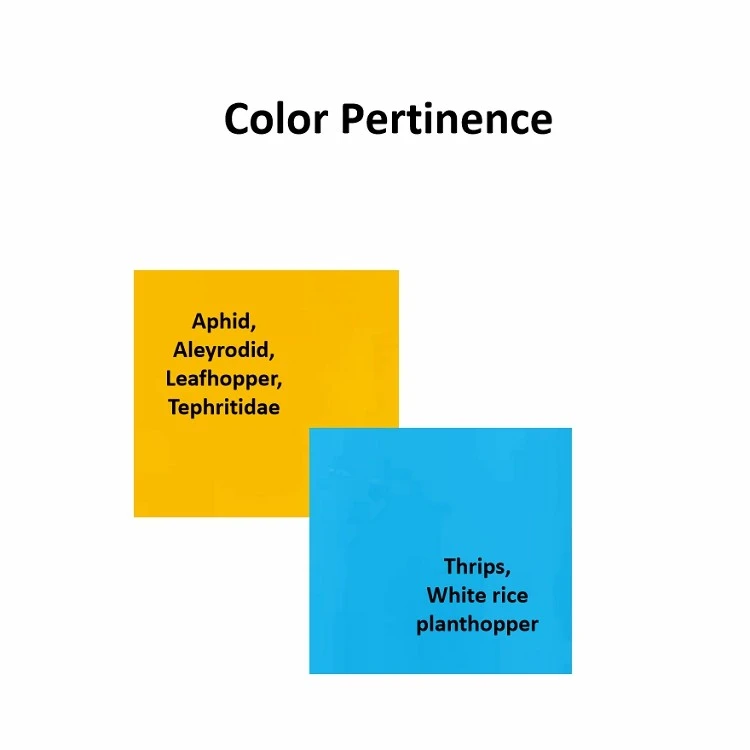

Spectrum Matching: In-house laboratory color-matching ensures exact wavelength requirements (±5 nm) for targeted pest phototaxis.
Packaging Options: Selection includes pegboard retail sleeves, multi-pack clear OPP wraps, and bulk commercial boxes. In-line printing for specific grid patterns, tracking barcodes, or localized instructions.

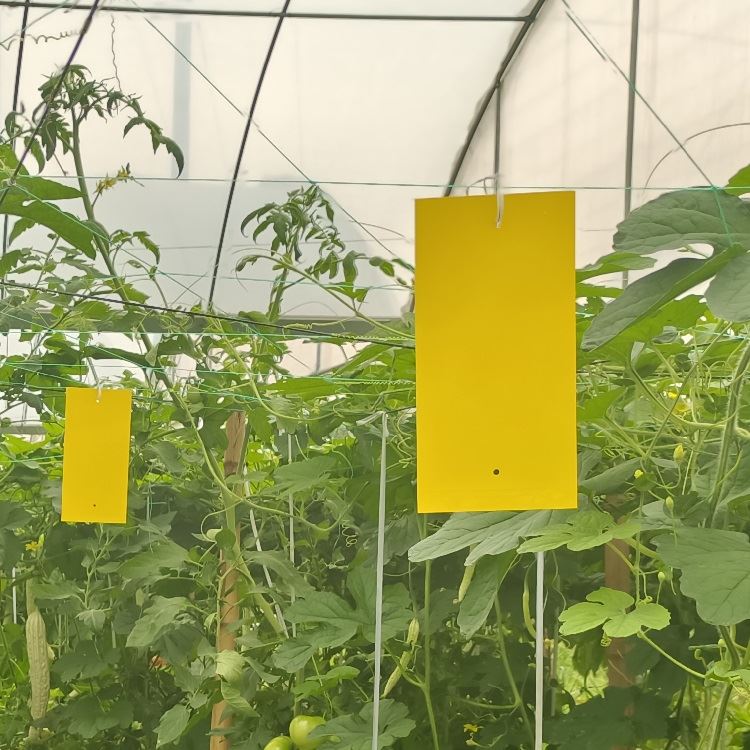

Hanging Configurations: Pre-punched hanging slots configured in centered single-hole, dual-corner, or custom hook layouts for greenhouse wire setups.
Timelines: Digital CAD prototyping completed within 5 business days; full production scaling within 21 days post-approval. New custom SKU development takes 30 days.
Quality Assurance
Raw Material Verification: Every batch of raw PP, paperboard, and adhesive polymers undergoes FTIR spectroscopy testing before entering the production line.
Production Capacity: 3 automated slot-die coating lines delivering 350,000 individual traps per 24-hour cycle to prevent supply chain bottlenecks.
Glue Coating Accuracy: Automated laser monitoring calibrated to ±2 g/m² checks adhesive thickness every 60 seconds to ensure consistent field longevity.
Batch Traceability: Serialized batch numbering printed on every master carton links the final product to the production date, machine operator, and raw material lot.
Lab Stress Testing: Every production run undergoes 180° peel-adhesion testing and rolling ball tack testing to guarantee zero adhesive run-off under UV exposure.
Logistics & Packaging
Container Loading: 1x20ft FCL accommodates 450,000 units of standard 10x25 cm traps packed on ISPM-15 heat-treated pallets.
Anti-Blocking Protocol: Palletized shipments utilize rigid corner boards, stretch wrapping, and internal desiccant control to prevent adhesive melting during tropical transit.
Global Shipping Terms: Standard delivery via FOB, CIF, and DDP to major North American and European logistics hubs.
Compliance
Organic Production Compliance: Adhesives and substrates verified compliant for certified organic agriculture under USDA NOP and EU 2018/848 regulations.
Chemical Safety Standards: Compliant with REACH regulations and RoHS directives; free of heavy metals, plasticizers, and SVHCs.
Indirect Food Contact Safety: Adhesives meet the technical criteria of FDA 21 CFR 175.105 for agricultural harvesting components.
AQL Inspection: Finished goods sampled before palletization according to ISO 2859-1 (AQL 1.5 Accept / 4.0 Reject) standards.
Documentation Support: MSDS, TDS, and Certificates of Analysis (CoA) provided automatically with every shipment.
