Description

Technical Parameters

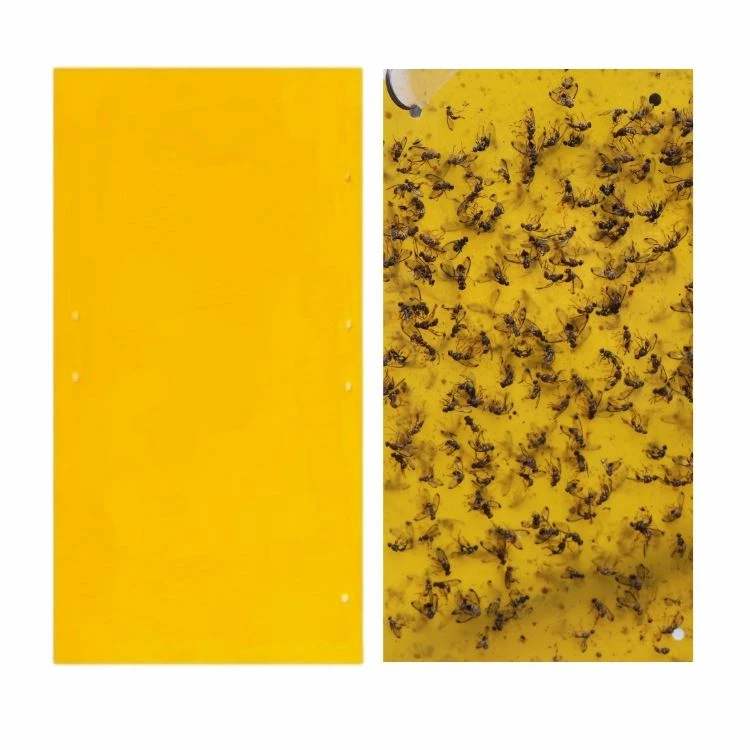

The Waterproof Sticky Pest Sheets are adhesive-based insect monitoring and trapping tools used in controlled agriculture and outdoor crop environments.

Technical Specifications

Specification	Detail
Substrate Options	HDPE (150μm), rigid PVC, or biodegradable PLA
Standard Sheet Sizes	10×25 cm, 20×40 cm
Roll Format	Up to 15 cm × 100 m
Adhesive Coating	40 GSM hot-melt, ±2 GSM laser-monitored
Safe Handling Margin	10 mm adhesive-free edges
Release Liner	65 g silicone-coated, cold-weather stable
UV Color Stability	2,000-hour UV simulation, no visible fading
Monitoring Grid	Optional 2×2 cm printed grid for IPM counting

Key Features

Temperature-Stable Adhesive: Hot-melt adhesive retains structural integrity without dripping up to 85°C greenhouse peaks and maintains tackiness down to -5°C.

Weatherproof Substrate Durability: UV-stabilized PP/PVC backing resists degradation for 90 days of continuous solar exposure and maintains 100% adhesion through 72-hour overhead irrigation cycles.

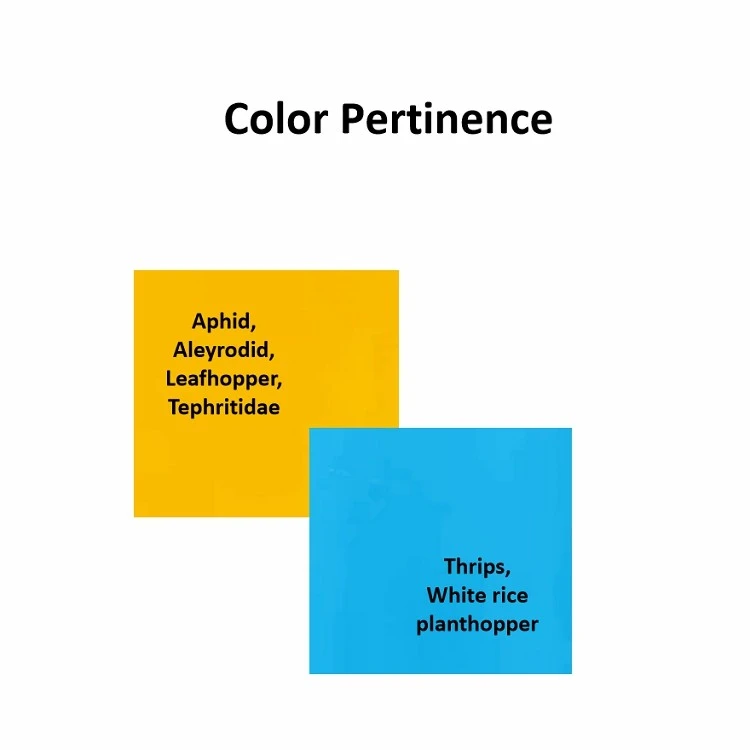

Phototactic Spectrum Optimization: 460 nm Blue spectrum isolates Thrips; high-contrast 580 nm Yellow spectrum intercepts Whiteflies, Leafminers, Aphids, and Fungus Gnats.

Integrated Layout Compatibility: Non-reflective matte finish prevents LED glare interference, with surface dimensions optimized to host standard commercial pheromone dispensers.

Crop & Environment Applications

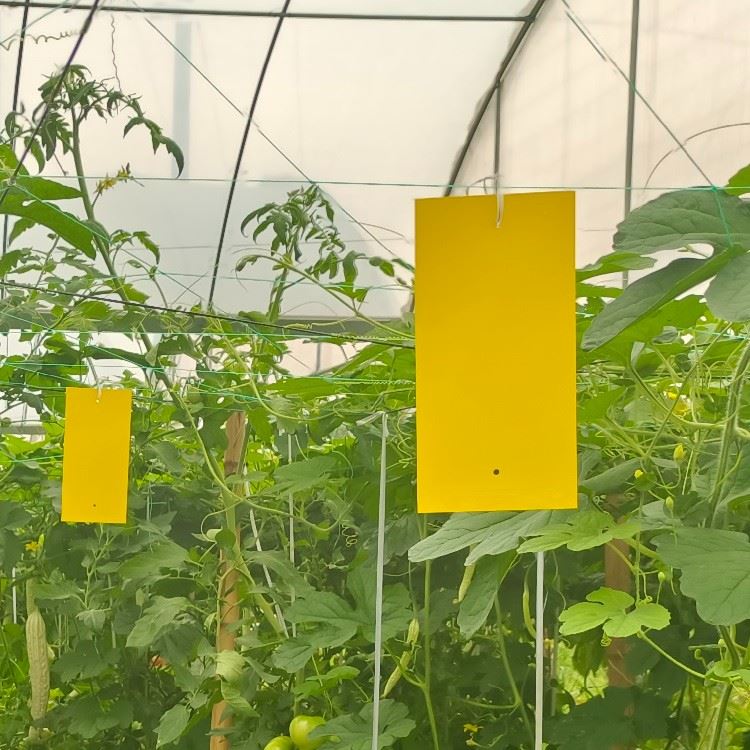

Protected Cultivation: Population monitoring for high-wire tomato, cucumber, and pepper cultivation systems in commercial greenhouses.

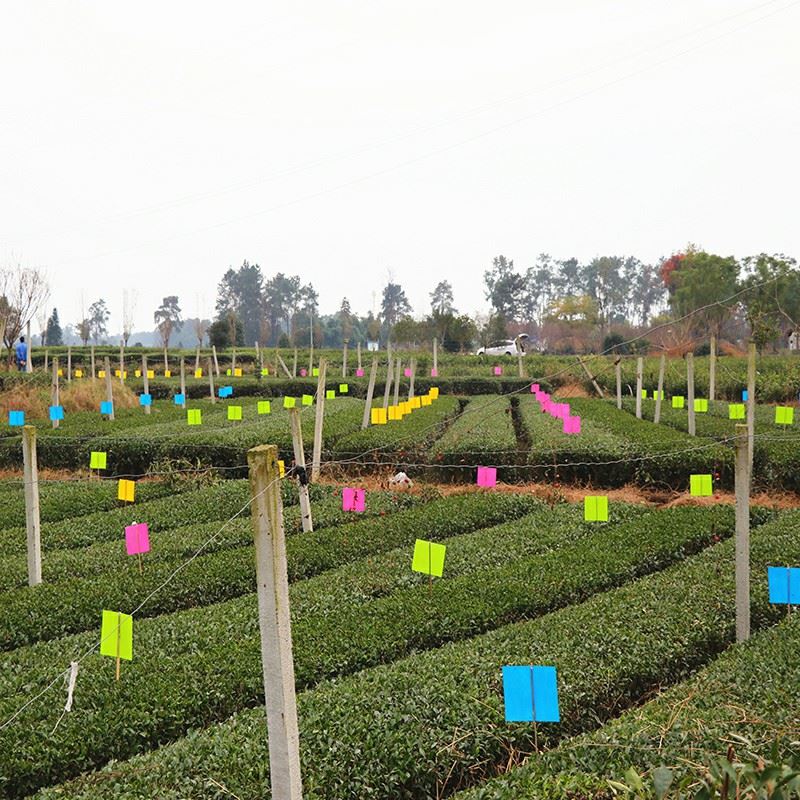

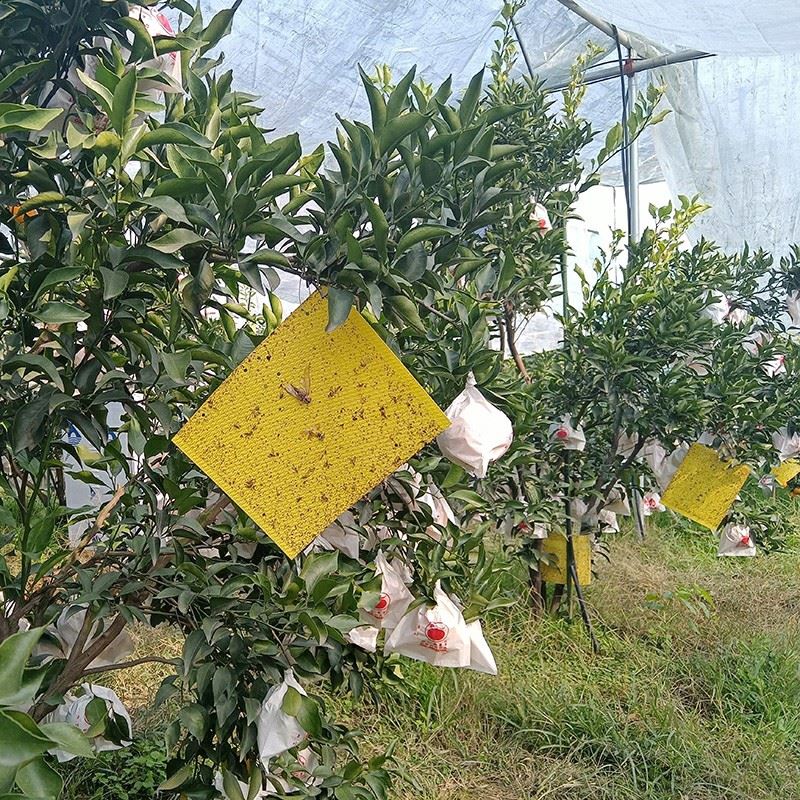

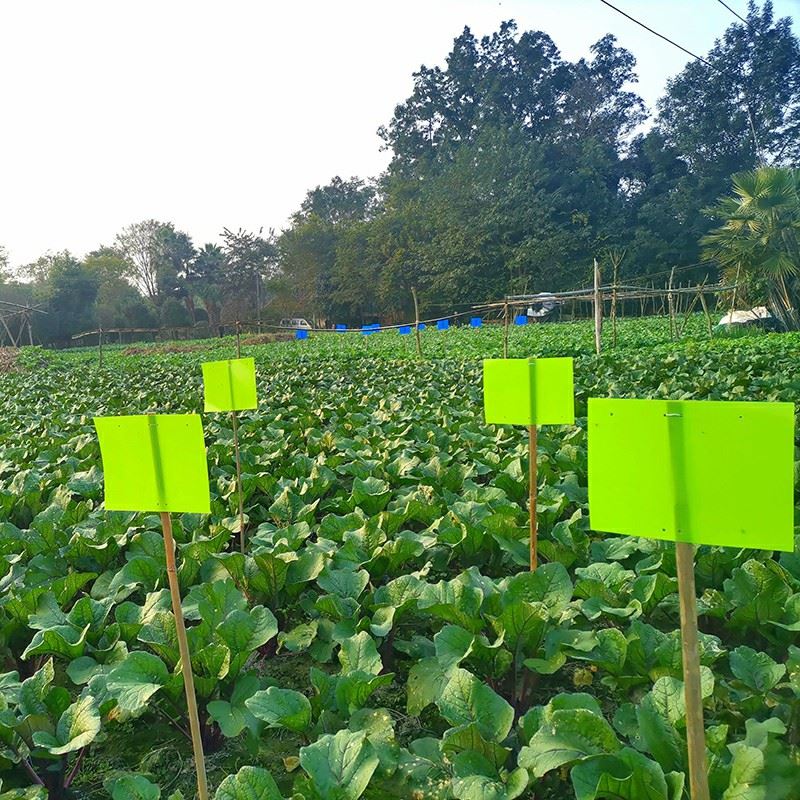

Open-Field Horticulture: Direct deployment in commercial berry plantations, vineyards, and open-air vegetable farms.

Orchard Canopies: Tensile strength rated to withstand up to 35 mph gusts without substrate tearing during high-wind conditions.

Indoor & Hydroponic Farms: Zero-residue pest monitoring for vertical farming and mushroom facilities operating up to 95% RH.

OEM Customization & Private Labeling

Custom Dimensions & Grids: Roll widths from 50 mm to 600 mm, custom sheet sizes for automated lines, and precision counting grids printed on non-sticky margins.

Substrate & Coating Weight Options: Variable glue coat weights tailored for high-dust fields or cleanrooms, utilizing standard PVC, recyclable PE, or compostable cellulose backings.

Private Label Packaging: Factory-direct branding including custom carton printing, individual SKU barcoding, and localized multi-language instructions.

Sample Lead Time: Delivery of custom-tailored functional samples within 7 working days for commercial field trial verification.

Supply Chain Support

Minimum Order Quantities (MOQ): 5,000–10,000 sheets for standard in-stock inventory (48-hour dispatch); 50,000 sheets for custom OEM/private label runs.

Monthly Production Capacity: 3.5 million sheets to fulfill industrial distributor tenders and high-volume commercial contracts.

Lead Times: Turnaround completed within 12–18 working days with clear schedule tracking milestones.

International Logistics: Shipping via FOB Shanghai, CIF Rotterdam, or DDP; complete MSDS, phytosanitary certificates, and Certificate of Origin (CO) issued within 12 hours of dispatch.

Certifications & Compliance

ISO 9001: 2015 certified facility manufacturing ensures consistent batch-to-batch thickness and adhesive weight.
REACH and RoHS compliant, with heavy metal and SVHC chemical screening verified by independent third-party laboratories (SGS/TUV reports available).
UV-stabilized polymer substrate withstands up to 90 days of field exposure without structural degradation or yellowing.
Non-toxic, pesticide-free hot-melt adhesive safe for organic farming and direct deployment in food-crop greenhouses.

FAQ

Q: Is this product formally listed or approved for use in certified organic farming programs?

A: The adhesive formulation meets the non-chemical pest control criteria under EU Organic Regulation 2018/848 Article 24 and has been reviewed under OMRI guidelines, with certification documentation provided as part of the standard pre-order technical package.

Q: What warranty applies if adhesive tack degrades before the minimum stated field period?

A: Boards showing documented tack failure before day 60 under normal operating conditions qualify for batch replacement at no cost, confirmed by submitting the carton batch code against the factory's retained adhesive sample from that specific production lot.

Q: Does the biodegradable PLA substrate version carry EN 13432 industrial composting certification?

A: Yes, the PLA-backed version is certified under EN 13432 with verified disintegration above 90% within 12 weeks at 58°C in industrial composting facilities, qualifying for green waste streams in EU member states.

Q: What is the minimum order for mixing two substrate types - for example, HDPE and PLA - on the same purchase order?

A: Mixed substrate orders are accepted from 10,000 sheets total, with each substrate variant requiring a minimum of 3,000 sheets to avoid additional coating line changeover charges.

Q: What quality inspection standard governs production, and is third-party pre-shipment inspection accepted?

A: Production conforms to AQL 1.0 for critical defects and AQL 2.5 for major defects under ISO 2859-1 sampling procedures, with SGS or Bureau Veritas pre-shipment inspection welcomed during the final 72 hours before container loading.

Q: Can the roll format be supplied pre-perforated for automated greenhouse dispensing machines?

A: Yes, perforation intervals from 25 cm to 50 cm can be configured during OEM tooling setup, compatible with standard automated roll dispensers used in large-scale Dutch and Scandinavian greenhouse operations, available for orders above 50,000 linear meters.

Q: What payment terms are available for first-time international distributors placing standard stock orders?

A: First-time buyers use 30% T/T deposit with 70% balance against B/L copy for standard in-stock orders, while buyers with established order history after three transactions qualify for Irrevocable L/C at sight as an alternative settlement method.
