Description

Technical Parameters

The Sticky insect tape trap is a physical pest management tool consisting of a durable polymer or paper substrate coated on one or both sides with a pressure-sensitive, non-drying adhesive.

Product Specifications

Material & Stability Parameters	Key Specification
Substrate	Virgin HDPE, 700-micron thickness for structural load resistance
UV Protection	UV-inhibitor masterbatch, up to 140 kly/year exposure resistance
Dimensional Tolerance	±0.5 mm width accuracy for 100 m / 500 m rolls
Optical Stability	Non-fading pigments, stable performance up to 180 days outdoor use
Temperature Range	Stable structure from -10°C to +55°C
Eco Option	Paper-based version, 25 N/15mm wet tensile strength

Target Pest Species & Crop Applications

Targeted Photo-Taxis Attractants: 540nm yellow substrate targets Bemisia tabaci (Whitefly), Liriomyza spp. (Leafminer), and Sciaridae (Gnat); 460nm blue substrate selectively attracts Frankliniella occidentalis (Western Flower Thrips) while protecting beneficial pollinators.

Bio-Control Compatible: Tested and verified 100% safe for integration alongside commercial bio-protection programs utilizing Encarsia formosa and Orius insidiosus.

Zero-Residue Compliance: VOC-free hot-melt formulation, fully compliant with global certified organic farming standards and strict supermarket zero-chemical residue import policies.

Key Features

Immediate Immobilization: Industrial-grade pressure-sensitive adhesive applied at a uniform density of 45 g/m² (±2 g/m²) ensures instant pest capture upon contact with zero escape rates.

Thermal & Moisture Stability: Non-drying, non-bleeding formula withstands overhead micro-sprinkler irrigation and heavy rain; high shear strength prevents dripping or running onto fruit and foliage at greenhouse temperatures up to 48°C.

Dust & Particulate Tolerance: Advanced tack-active polymers maintain maximum insect-catching efficiency even when up to 60% of the surface area is covered by agricultural dust or windblown particulates.

High-Speed Machine Deployment: Heavy-duty 65g silicone-coated kraft release liner guarantees tear-free peeling during high-speed automated field machinery unrolling.

Private Label & Custom Service

OEM manufacturing supports continuous roll lengths from 20 meters up to 1,000 meters to seamlessly match specific commercial greenhouse bay dimensions.
Inline flexographic printing for custom logos, safety instructions, and exact 1x1 cm counting grids for simplified pest population charting.
Tailored adhesive-free borders (3mm to 10mm customizable) prevent machine gumming during automated deployment.
Structural prototypes and full-scale functional sample rolls delivered for field evaluation within 10 business days from technical drawing sign-off.
Custom-engineered widths, Pantone color-matching, or personalized release liners are available with a minimum order quantity (MOQ) of 5,000 square meters per run.

Manufacturing Capabilities

Operating 3 high-speed, fully automated slot-die adhesive coating lines delivering a combined monthly output of 750,000 square meters to secure peak-season supply.
Integrated electronic sensor arrays monitor adhesive thickness continuously, eliminating dry spots and preventing premature field peel-off failures.
Long-term raw material contracts exceeding 2,500 metric tons of polymer resins annually guarantee stable contract pricing during global demand surges.
ISO 9001:2015 Traceability: Every production lot undergoes a mandatory 72-hour quality hold-including destructive pull-tests and environmental aging evaluations-with full digital batch logging from raw chemical to shipped pallet.

Logistics & Packaging

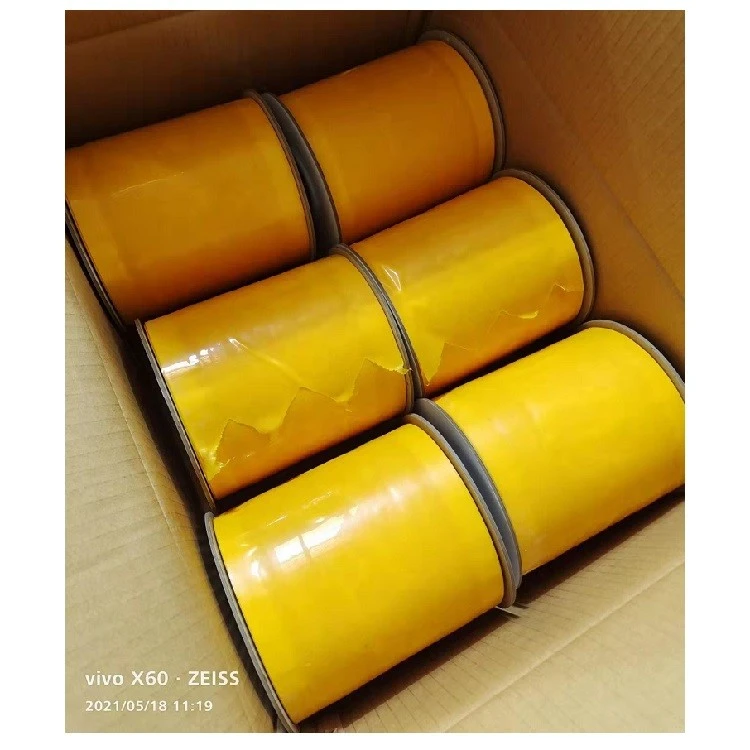

Heavy-Duty Export Packaging: Packed in double-wall, BC-flute corrugated cartons (180 N crushing resistance) on ISPM-15 heat-treated wooden pallets, 5-layer stretch-wrapped.

Optimized Container Loading: Standardized loading profiles accommodate exactly 42,000 square meters per 20ft FCL and 92,000 square meters per 40ft HQ.

Lead Times: Standard specifications ship within 21 days; first-run custom private-label contracts are guaranteed ready within 30 days, complete with digital Certificates of Origin and compliant Bills of Lading.

FAQ

Q: What testing method confirms the tape is 100% safe for Encarsia formosa and Orius insidiosus?

A: Compatibility was verified through 96-hour contact and residual toxicity bioassays conducted in partnership with a commercial biocontrol supplier, exposing both beneficial species to cured adhesive surfaces under greenhouse-simulated conditions. Mortality rates stayed below 2% across all trial batches, well within acceptable IPM integration thresholds.

Q: What standard was used to verify the 140 kly/year UV exposure resistance?

A: This figure is derived from ASTM G154 accelerated UV weathering tests and cross-referenced with real outdoor exposure data collected at a testing site in southern China with comparable annual solar radiation levels.

Q: How reliable is the roll unwinding process during high-speed automated field deployment in practice?

A: Our field trials with automated dispensing equipment across three commercial greenhouse installations recorded a jam/tear rate below 0.3% per 500-meter roll, attributed to the 65g silicone liner's consistent release force calibration.

Q: Can I request the ISO 9001:2015 certificate number and the latest audit date for verification?

A: Yes, the certificate number and issuing body contact are included with every formal quotation for buyer verification. This same audit also covers the 72-hour quality hold process referenced in our production documentation.

Q: What happens during the 72-hour quality hold, and what specifically gets tested?

A: Each production lot is held for destructive pull-adhesion testing at three temperature points (-10°C, 25°C, 55°C) plus a simulated 72-hour environmental aging cycle before release for shipment.

Q: How does the 540nm yellow substrate compare to the 580nm or 570nm options used in other yellow trap products?

A: 540nm sits at the lower end of the yellow spectrum and was selected specifically to broaden attraction range across whitefly, leafminer, and fungus gnat simultaneously, rather than being narrowly optimized for a single pest like higher-wavelength variants.
